Round Nylon Pillars Isolation Distance Bolts Brass M6 Standoff Spacer ISO 9001

Name: Round Nylon Pillars Isolation Distance Bolts Brass M6 Standoff Spacer ISO 9001
Brand: TIGERLEVEL
Price: 0.3 USD

Brand Name : TIGERLEVEL

Model Number : M6-15

Certification : ISO 9001 Rose

Place of Origin : China

MOQ : 100000pcs

Price : 0.3-1USD

Payment Terms : T/T, L/C

Supply Ability : 500000pcs per month

Delivery Time : 15-20DAYS

Packaging Details : BOX +PALLET

Material : PA66+BRASS

fire-protection rating : UL94 V-2

color : original

suitable tempreture : -40 to 85 degress

Size : M6

Application : PCB , elective

Contact Now

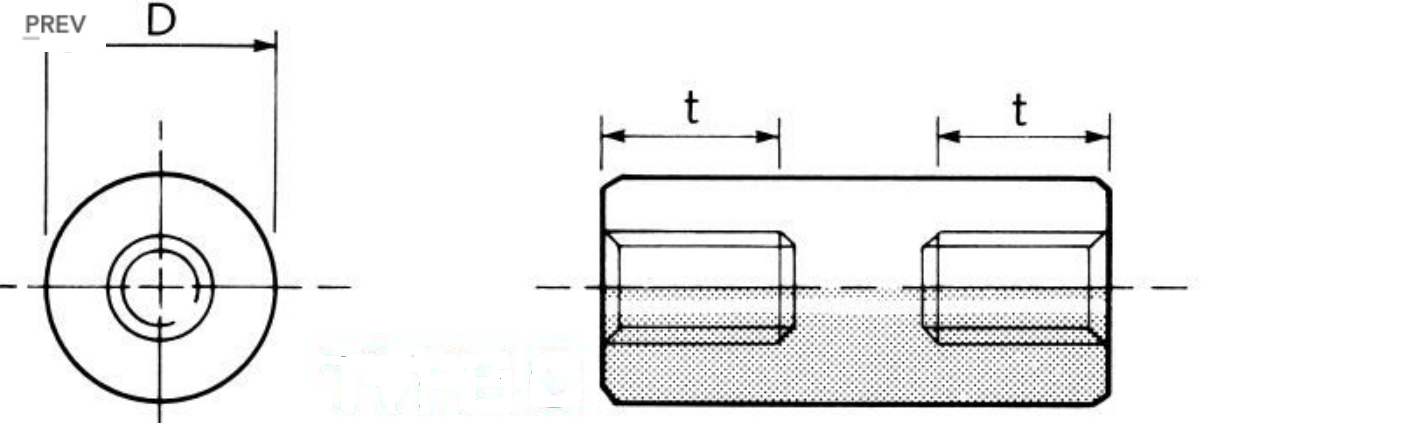

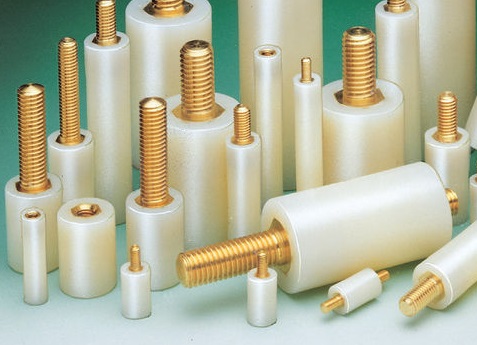

Round Nylon Pillar ,isolation distance bolt ,standoffs /spacers female to female

Material: Body – Nylon 66 (natural), Inserts – Brass (self colour).
Operating temperature: -40ºC to +85ºC.
P.T.F.E. available for temperatures up to 250°C.
Flammability ratings on application.
All dimensions in millimetres.
RoHS compliant.

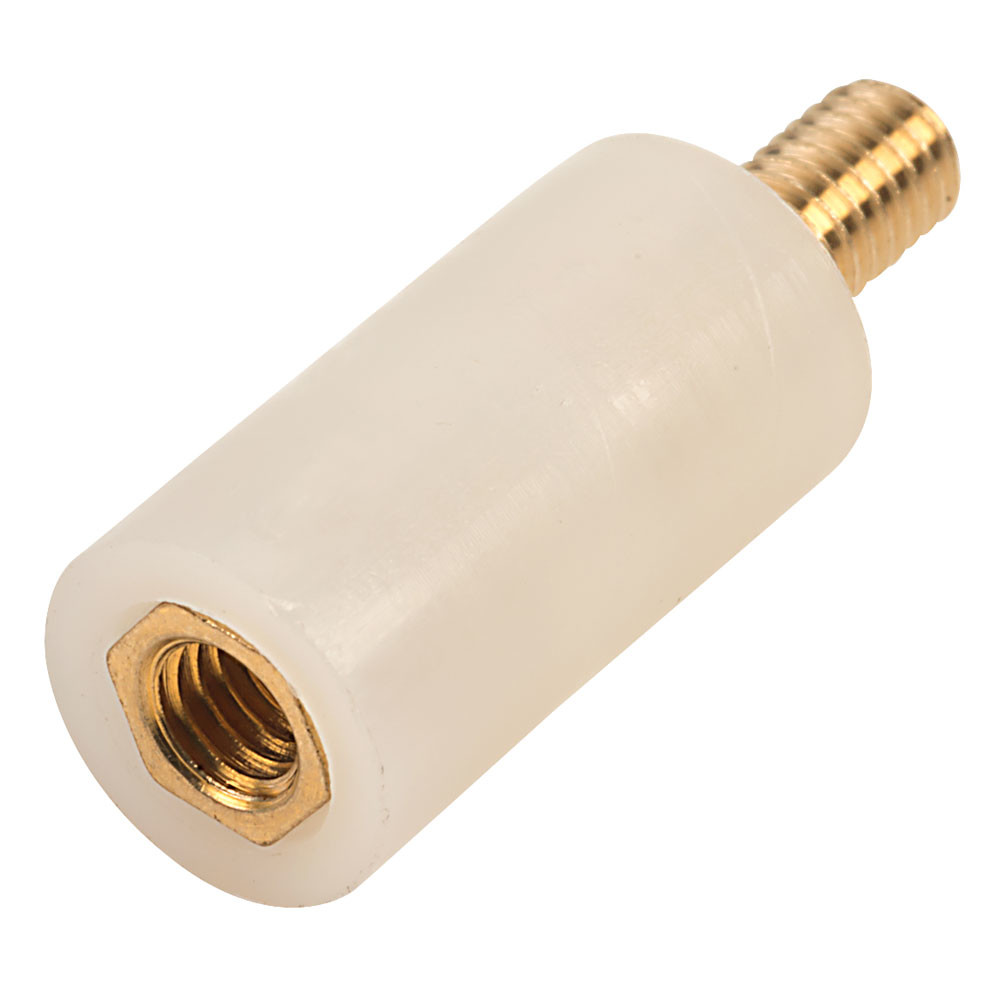

Round Nylon Pillars Isolation Distance Bolts Brass M6 Standoff Spacer ISO 9001

Material : PA66+Brass

color : Nature

Size :M6-15mm

fire-protection rating:ULL94V-2

Suitable tempreture:-40-85degree

thread size accepte: M2, M2.5 ,M3,M4,M5,M6,M8,M10

more type for choose

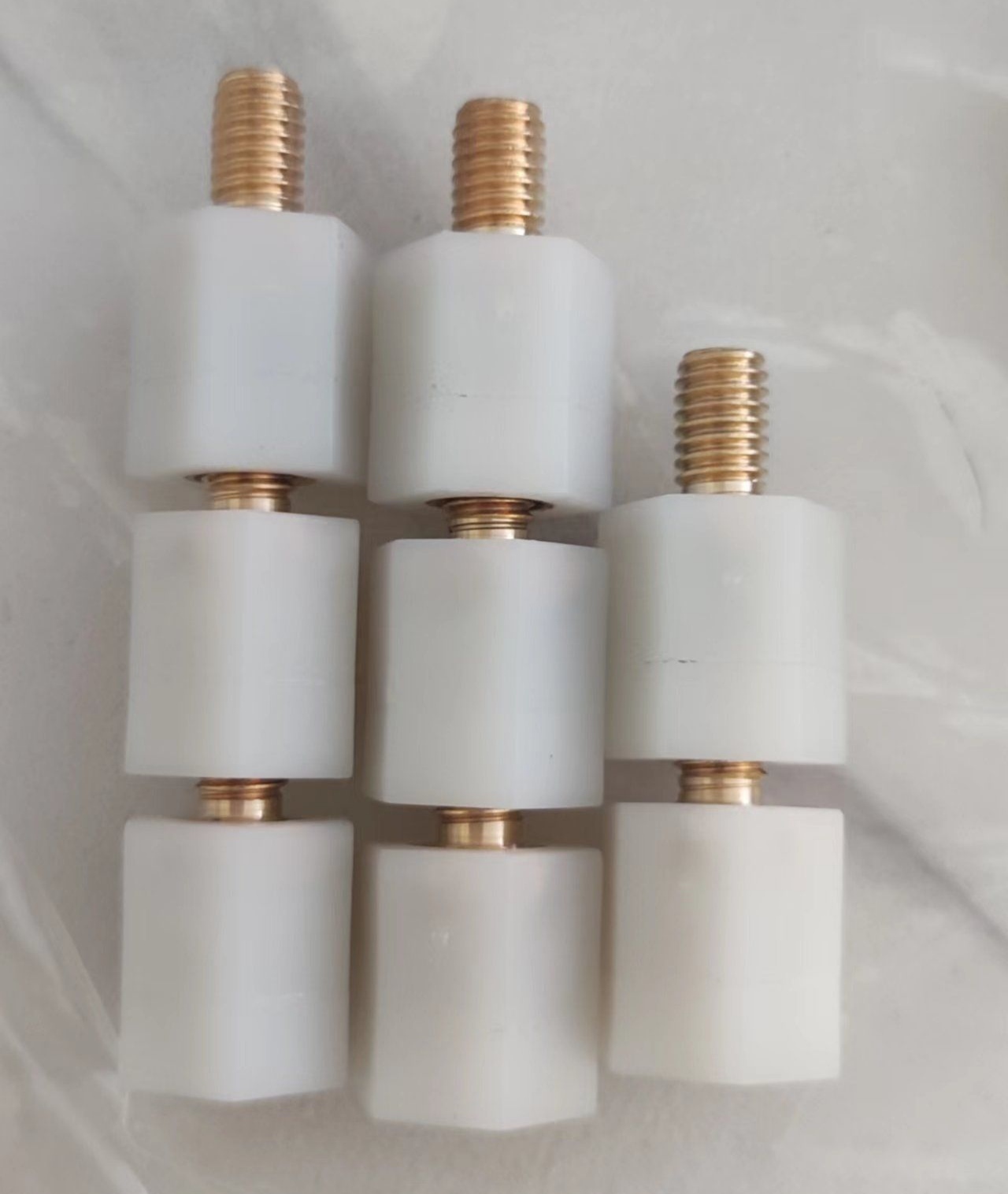

Round Nylon Pillars Isolation Distance Bolts Brass M6 Standoff Spacer ISO 9001

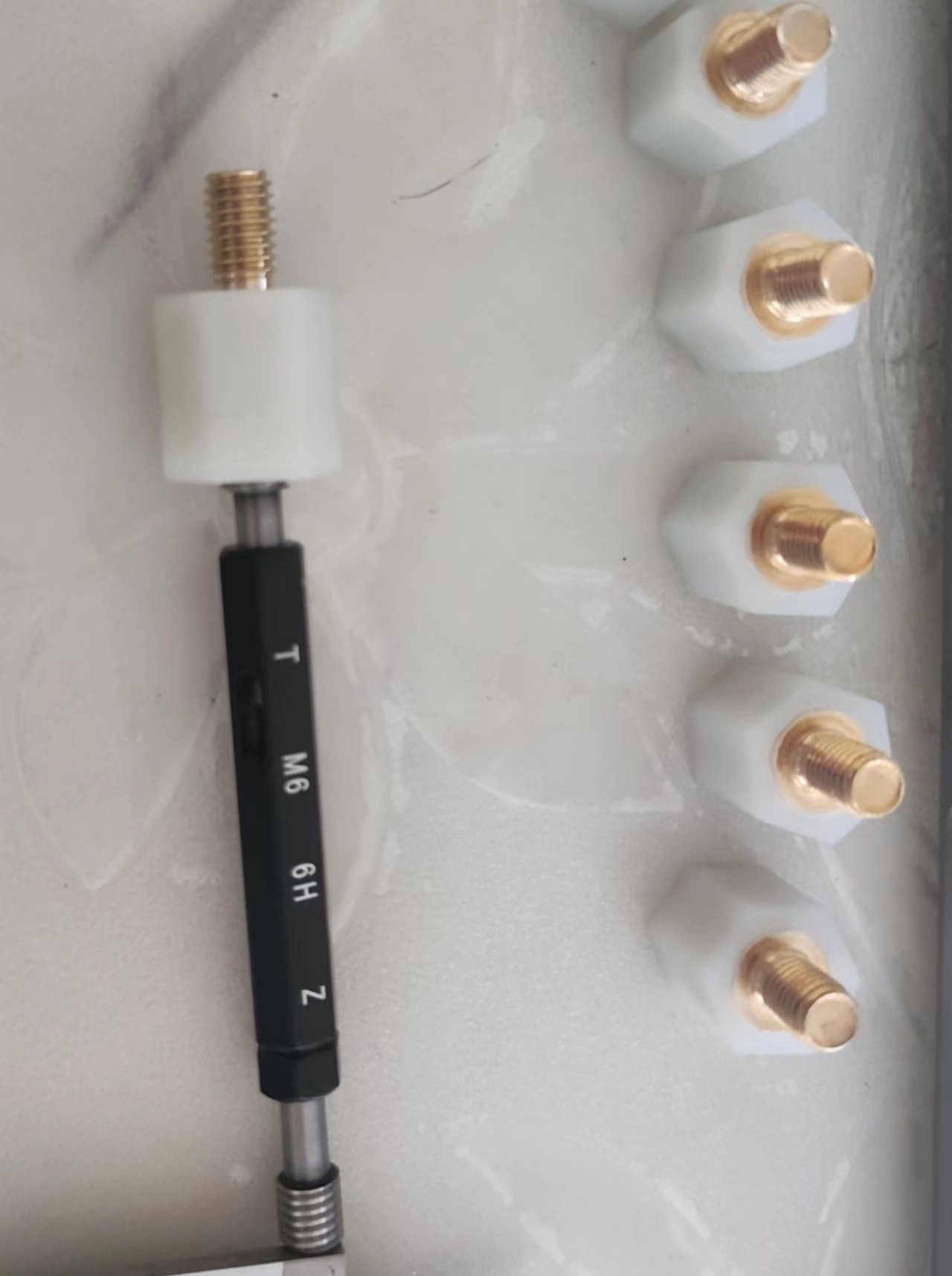

we always use gague to check the nut to make sure all the size of isolation distance bolts are correct.

package : corrugated box +pallet

Round Nylon Pillars Isolation Distance Bolts Brass M6 Standoff Spacer ISO 9001

we accept customized and much more size for choose .

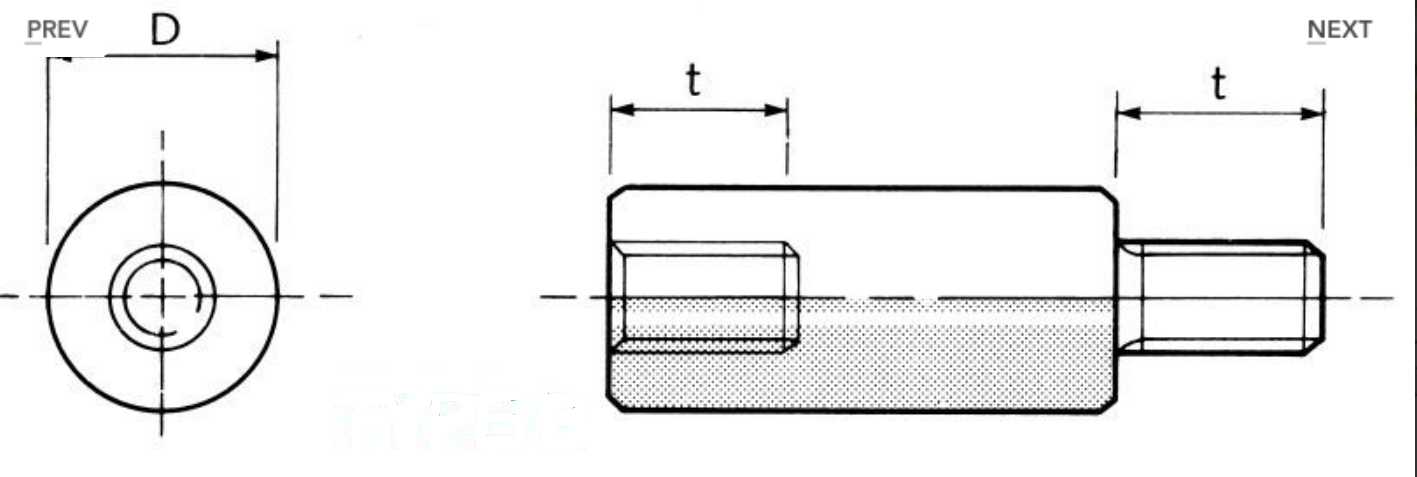

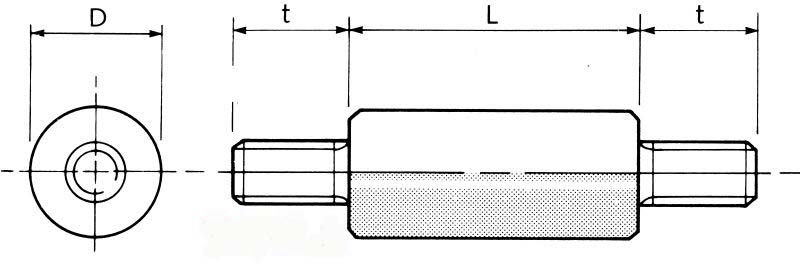

Part No.	Thread	L	W	A	B	Image
M2.5-15	M2.5	15.0	6.4	6.0	6.0
M3-15	M3	15.0		5.6	5.6
M3-70	M3	70.0		5.6	5.6
M4-25	M4	25.0	8.0	6.4	6.4
M4-55	M4	55.0	8.0	6.4	6.4
M5-55	M5	55.0	9.5	10.0	10.0
M6-45	M6	45.0	12.7	13.0	13.0
M6-120	M6	120.0	12.7	6.8	6.8
